C++ - 3次スプライン補間!

Updated:


C++ で3次スプライン補間のアルゴリズムを実装してみました。

過去には Ruby, Python, Fortran で実装しています。

0. 前提条件

  • LMDE 3 (Linux Mint Debian Edition 3; 64bit) での作業を想定。
  • GCC 9.2.0 (G++ 9.2.0) (C++17) でのコンパイルを想定。

1. 3次スプライン補間について

過去記事を参照のこと。

2. ソースコードの作成

  • ファイル読み込み部分、計算部分、実行部分とソースファイルを分けている。

File: file.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#ifndef SPLINE_INTERPOLATION_FILE_HPP_
#define SPLINE_INTERPOLATION_FILE_HPP_

#include <fstream>
#include <string>
#include <vector>

class File {
  std::string f_data;

public:
  File(std::string f_data) : f_data(f_data) {}
  bool get_text(std::vector<std::vector<double>>&);
};

#endif

File: file.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
#include "file.hpp"

#include <iostream>
#include <sstream>
#include <string>
#include <vector>

bool File::get_text(std::vector<std::vector<double>>& data) {
  try {
    // ファイル OPEN
    std::ifstream ifs(f_data);
    if (!ifs.is_open()) return false;  // 読み込み失敗

    // ファイル READ
    std::string buf;                   // 1行分バッファ
    while (getline(ifs, buf)) {
      std::vector<double> rec;         // 1行分ベクタ
      std::istringstream iss(buf);     // 文字列ストリーム
      std::string field;               // 1列分文字列

      // 1行分文字列を1行分ベクタに追加
      double s;
      while (iss >> s)
        rec.push_back(s);

      // 1行分ベクタを data ベクタに追加
      if (rec.size() != 0) data.push_back(rec);
    }
  } catch (...) {
      std::cerr << "EXCEPTION!" << std::endl;
      return false;
  }

  return true;  // 読み込み成功
}

File: calc.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#ifndef SPLINE_INTERPOLATION_CALC_HPP_
#define SPLINE_INTERPOLATION_CALC_HPP_

#include <vector>

class Calc {
  std::vector<std::vector<double>> data_src;  // 元データ
  std::size_t n;                              // 与えられた点の数
  bool calc_a(
    std::vector<double>&,
    std::vector<double>&
  );                                          // 配列 a 計算
  bool calc_b(
    std::vector<double>&,
    std::vector<double>&
  );                                          // 配列 b 計算
  bool calc_c(
    std::vector<double>&,
    std::vector<double>&
  );                                          // 配列 c 計算
  bool calc_d(
    std::vector<double>&,
    std::vector<double>&
  );                                          // 配列 d 計算
  bool calc_h(
    std::vector<std::vector<double>>&,
    std::vector<double>&
  );                                          // 配列 h 計算
  bool calc_v(
    std::vector<std::vector<double>>&,
    std::vector<double>&
  );                                          // 配列 v 計算
  bool calc_w(
    std::vector<std::vector<double>>&,
    std::vector<double>&,
    std::vector<double>&
  );                                          // 配列 w 計算
  bool gen_mtx(
    std::vector<double>&,
    std::vector<double>&,
    std::vector<std::vector<double>>&
  );                                          // 計算用行列生成
  bool solve_gauss_jordan(
    std::vector<std::vector<double>>&,
    std::vector<double>&
  );                                          // Gauss-Jordan 解法
  unsigned int search_i(double);              // 計算対象インデックス検索

public:
  Calc(std::vector<std::vector<double>>& data_src)
    : data_src(data_src), n(get_size()) {}    // コンストラクタ
  unsigned int get_size();                    // 行列サイズ取得
  bool interpolate_spline(
    std::vector<std::vector<double>>&,
    std::vector<std::vector<double>>&
  );                                          // 3次スプライン補間
};

#endif

File: calc.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
#include "calc.hpp"

#include <cmath>
#include <iomanip>
#include <iostream>
#include <sstream>
#include <vector>

/**
 * @brief      配列サイズ取得
 *
 * @return     配列サイズ(unsigned int)
 */
unsigned int Calc::get_size() {
  return data_src.size();
}

/**
 * @brief      3次スプライン補間
 *
 * @param[ref] n x 2 行列(配列) data_src (double)
 * @param[ref] ? x 2 行列(配列) data_res (double)
 * @return     真偽(bool)
 * @retval     true  成功
 * @retval     false 失敗
 */
bool Calc::interpolate_spline(
  std::vector<std::vector<double>>& data_src,
  std::vector<std::vector<double>>& data_res
) {
  std::vector<double> a;                 // 配列 a
  std::vector<double> b;                 // 配列 b
  std::vector<double> c;                 // 配列 c
  std::vector<double> d;                 // 配列 a
  std::vector<double> h;                 // 配列 h
  std::vector<double> v;                 // 配列 v
  std::vector<double> w;                 // 配列 w
  std::vector<std::vector<double>> mtx;  // 計算用行列
  std::size_t i;                         // loop インデックス
  double s;                              // step
  double x;                              // 計算対象 x 値
  double y;                              // 計算結果 y 値
  unsigned int idx;                      // 計算対象インデックス

  try {
    // 配列 h 計算
    if (!calc_h(data_src, h)) {
      std::cout << "[ERROR] H array could not be calculated!" << std::endl;
      return false;
    };
    // 配列 w 計算
    if (!calc_w(data_src, h, w)) {
      std::cout << "[ERROR] W array could not be calculated!" << std::endl;
      return false;
    };
    // 行列生成
    if (!gen_mtx(h, w, mtx)) {
      std::cout << "[ERROR] Matrix could not be generated!" << std::endl;
      return false;
    };
    // 配列 v 計算
    if (!calc_v(mtx, v)) {
      std::cout << "[ERROR] V array could not be calculated!" << std::endl;
      return false;
    };
    // 配列 b 計算
    if (!calc_b(v, b)) {
      std::cout << "[ERROR] B array could not be calculated!" << std::endl;
      return false;
    };
    // 配列 a 計算
    if (!calc_a(v, a)) {
      std::cout << "[ERROR] B array could not be calculated!" << std::endl;
      return false;
    };
    // 配列 d 計算
    if (!calc_d(v, d)) {
      std::cout << "[ERROR] D array could not be calculated!" << std::endl;
      return false;
    };
    // 配列 c 計算
    if (!calc_c(v, c)) {
      std::cout << "[ERROR] C array could not be calculated!" << std::endl;
      return false;
    };
    // 補間
    s = 0.1;
    for (i = 0; i <= (data_src[n - 1][0] - data_src[0][0]) / s; i++) {
      std::vector<double> row;
      x = i * s;
      idx = search_i(x);
      y = a[idx] * std::pow(x - data_src[idx][0], 3.0) +
          b[idx] * std::pow(x - data_src[idx][0], 2.0) +
          c[idx] * (x - data_src[idx][0]) +
          d[idx];
      row.push_back(x);
      row.push_back(y);
      data_res.push_back(row);
    }
  } catch (...) {
    return false;  // 計算失敗
  }

  return true;  // 計算成功
}

bool Calc::calc_a(
  std::vector<double>& v,
  std::vector<double>& a
) {
  std::size_t i;

  try {
    for (i = 0; i < n - 1; i++)
      a.push_back(
        (v[i + 1] - v[i]) /
        (6 * (data_src[i + 1][0] - data_src[i][0]))
      );
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_b(
  std::vector<double>& v,
  std::vector<double>& b
) {
  std::size_t i;

  try {
    for (i = 0; i < n - 1; i++)
      b.push_back(v[i] / 2.0);
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_c(
  std::vector<double>& v,
  std::vector<double>& c
) {
  std::size_t i;

  try {
    for (i = 0; i < n - 1; i++)
      c.push_back(
        (data_src[i + 1][1] - data_src[i][1]) /
        (data_src[i + 1][0] - data_src[i][0]) -
        (data_src[i + 1][0] - data_src[i][0]) *
        (2.0 * v[i] + v[i + 1]) / 6.0
      );
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_d(
  std::vector<double>& v,
  std::vector<double>& d
) {
  std::size_t i;

  try {
    for (i = 0; i < n; i++)
      d.push_back(data_src[i][1]);
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_h(
  std::vector<std::vector<double>>& data,
  std::vector<double>& h
) {
  std::size_t i;

  try {
    for (i = 0; i < n - 1; i++)
      h.push_back(data[i + 1][0] - data[i][0]);
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_v(
  std::vector<std::vector<double>>& mtx,
  std::vector<double>& v
) {
  std::size_t i;
  std::vector<double> g; // Gauss-Jordan 計算用配列

  try {
    if (!solve_gauss_jordan(mtx, g)) {
      std::cout << "[ERROR] Could not be solved by Gauss-Jordan!" << std::endl;
      return false;
    };
    v.push_back(0.0);
    for (i = 0; i < n - 2; i++)
      v.push_back(g[i]);
    v.push_back(0.0);
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::calc_w(
  std::vector<std::vector<double>>& data,
  std::vector<double>& h,
  std::vector<double>& w
) {
  std::size_t i;

  try {
    for (i = 1; i < n - 1; i++)
      w.push_back(
        6.0 * ((data[i + 1][1] - data[i][1]) / h[i]
        - (data[i][1] - data[i - 1][1]) / h[i - 1])
      ) ;
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::gen_mtx(
  std::vector<double>& h,
  std::vector<double>& w,
  std::vector<std::vector<double>>& mtx
) {
  std::size_t i;
  std::size_t j;

  try {
    for (i = 0; i < n - 2; i++) {
      std::vector<double> row;
      for (j = 0; j < n - 1; j++)
        row.push_back(0.0);
      mtx.push_back(row);
    }
    for (i = 0; i < n - 2; i++) {
      mtx[i][i] = 2.0 * (h[i] + h[i + 1]);
      mtx[i][n - 2] = w[i];
      if (i == 0)
        continue;
      mtx[i - 1][i] = h[i];
      mtx[i][i - 1] = h[i];
    }
  } catch (...) {
    return false;
  }

  return true;
}

bool Calc::solve_gauss_jordan(
  std::vector<std::vector<double>>& mtx,
  std::vector<double>& g
) {
  std::size_t i;
  std::size_t j;
  std::size_t k;
  double p;
  double d;

  try {
    for (k = 0; k < n - 2; k++) {
      p = mtx[k][k];
      for (j = k; j < n - 1; j++)
        mtx[k][j] /= p;
      for (i = 0; i < n - 2; i++) {
        if (i == k)
          continue;
        d = mtx[i][k];
        for (j = k; j < n - 1; j++)
          mtx[i][j] -= d * mtx[k][j];
      }
    }
    for (i = 0; i < n - 2; i++)
      g.push_back(mtx[i][n - 2]);
  } catch (...) {
    return false;
  }

  return true;
}

unsigned int Calc::search_i(double x) {
  std::size_t i;
  std::size_t j;
  double k;

  try {
    i = 0.0;
    j = n - 1;
    while (i < j) {
      k = (i + j) / 2.0;
      if (data_src[k][0] < x) {
        i = k + 1;
      } else {
        j = k;
      }
    }
    if (i > 0.0)
      i--;
    return i;
  } catch (...) {
    return 0;
  }
}

File: spline_interpolation.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
/***********************************************************
  3次スプライン補間

    DATE          AUTHOR          VERSION
    2020.07.31    mk-mode.com     1.00 新規作成

  Copyright(C) 2020 mk-mode.com All Rights Reserved.
***********************************************************/
#include "calc.hpp"
#include "file.hpp"

#include <cstdlib>   // for EXIT_XXXX
#include <iomanip>   // for setprecision
#include <iostream>
#include <string>
#include <vector>

int main(int argc, char* argv[]) {
  std::string f_data;                         // データファイル名
  std::vector<std::vector<double>> data_src;  // データ配列(与えられた点)
  std::vector<std::vector<double>> data_res;  // データ配列(計算結果)
  std::size_t i;                              // loop インデックス

  try {
    // コマンドライン引数のチェック
    if (argc != 2) {
      std::cerr << "[ERROR] Number of arguments is wrong!\n"
                << "[USAGE] ./spline_interpolation <file_name>"
                << std::endl;
      return EXIT_FAILURE;
    }

    // ファイル名取得
    f_data = argv[1];

    // データ取得
    File file(f_data);
    if (!file.get_text(data_src)) {
      std::cout << "[ERROR] Failed to read the file!" << std::endl;
      return EXIT_FAILURE;
    }

    // 計算用オプジェクトのインスタンス化
    Calc calc(data_src);

    // 計算(補間)
    if (!calc.interpolate_spline(data_src, data_res)) {
      std::cout << "[ERROR] Failed to decompose!" << std::endl;
      return EXIT_FAILURE;
    }

    // 結果出力
    std::cout << std::setw(10) << std::right << "x"
              << std::setw(10) << std::right << "y"
              << std::endl;
    std::cout << std::fixed << std::setprecision(4);
    for (i = 0; i < data_res.size(); i++) {
      std::cout << std::setw(10) << std::right << data_res[i][0]
                << std::setw(10) << std::right << data_res[i][1]
                << std::endl;
    }
  } catch (...) {
      std::cerr << "EXCEPTION!" << std::endl;
      return EXIT_FAILURE;
  }

  return EXIT_SUCCESS;
}

3. ソースコードのコンパイル

まず、以下のように Makefile を作成する。(行頭のインデントはタブ文字

File: Makefile

gcc_options = -std=c++17 -Wall -O2 --pedantic-errors

spline_interpolation: spline_interpolation.o file.o calc.o
  g++ $(gcc_options) -o $@ $^

spline_interpolation.o : spline_interpolation.cpp
  g++ $(gcc_options) -c $<

file.o : file.cpp
  g++ $(gcc_options) -c $<

calc.o : calc.cpp
  g++ $(gcc_options) -c $<

run : spline_interpolation
  ./spline_interpolation

clean :
  rm -f ./spline_interpolation
  rm -f ./*.o

.PHONY : run clean

そして、ビルド(コンパイル&リンク)。

$ make

4. 動作確認

まず、以下のような入力ファイル(予め与える点 (x, y))を用意する。

File: data.txt

1
2
3
4
5
6
0.0 0.8
2.0 3.2
3.0 2.8
5.0 4.5
7.0 2.5
8.0 1.9

そして、実行。

$ ./spline_interpolation data.txt
         x         y
    0.0000    0.8000
    0.1000    0.9861
    0.2000    1.1713
    0.3000    1.3544
    0.4000    1.5346
    0.5000    1.7108
    0.6000    1.8820
    0.7000    2.0473
    0.8000    2.2056
    0.9000    2.3559
    1.0000    2.4973
    1.1000    2.6287
    1.2000    2.7492
    1.3000    2.8578
    1.4000    2.9534
    1.5000    3.0351
    1.6000    3.1019
    1.7000    3.1528
    1.8000    3.1868
    1.9000    3.2028
    2.0000    3.2000
    2.1000    3.1782
    2.2000    3.1408
    2.3000    3.0921
    2.4000    3.0366
    2.5000    2.9784
    2.6000    2.9220
    2.7000    2.8716
    2.8000    2.8316
    2.9000    2.8063
    3.0000    2.8000
    3.1000    2.8160
    3.2000    2.8530
    3.3000    2.9087
    3.4000    2.9810
    3.5000    3.0673
    3.6000    3.1656
    3.7000    3.2734
    3.8000    3.3884
    3.9000    3.5085
    4.0000    3.6312
    4.1000    3.7543
    4.2000    3.8755
    4.3000    3.9924
    4.4000    4.1028
    4.5000    4.2045
    4.6000    4.2950
    4.7000    4.3721
    4.8000    4.4335
    4.9000    4.4769
    5.0000    4.5000
    5.1000    4.5012
    5.2000    4.4815
    5.3000    4.4426
    5.4000    4.3862
    5.5000    4.3141
    5.6000    4.2279
    5.7000    4.1293
    5.8000    4.0201
    5.9000    3.9020
    6.0000    3.7766
    6.1000    3.6457
    6.2000    3.5109
    6.3000    3.3740
    6.4000    3.2368
    6.5000    3.1008
    6.6000    2.9678
    6.7000    2.8395
    6.8000    2.7177
    6.9000    2.6039
    7.0000    2.5000
    7.1000    2.4071
    7.2000    2.3246
    7.3000    2.2514
    7.4000    2.1862
    7.5000    2.1279
    7.6000    2.0754
    7.7000    2.0275
    7.8000    1.9831
    7.9000    1.9410
    8.0000    1.9000

5. グラフ確認

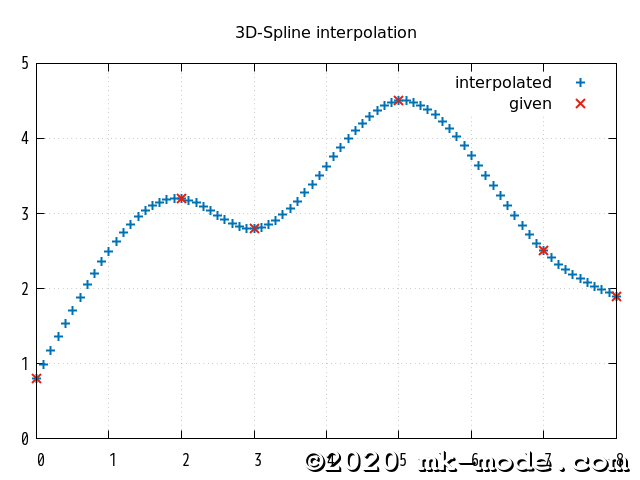

別途、 gnuplot で予め与えた点と補間した点をプロットしてみた。

SPLINE_INTERPOLATION


以上。







Sponsored Link



Comments
