C++ - 単回帰曲線(e指数回帰モデル)の計算!

Updated:


C++ で、数値からなる同サイズの配列2つを説明変数・目的変数とみなして単回帰曲線(e指数回帰モデル)を計算する方法についての記録です。
今回は連立1次方程式を解くのに「ガウスの消去法」を使用します。

過去には Fortran 等で実装しています。

0. 前提条件

  • Debian GNU/Linux 10.3 (64bit) での作業を想定。
  • GCC 9.2.0 (G++ 9.2.0) (C++17) でのコンパイルを想定。

1. アルゴリズムについて

求める曲線を \(y=ae^{bx}\) とする。両辺自然対数をとると
\(\log{y} = \log{ae^{bx}}\) で、さらに \(\log{y}=\log{a} + bx\) と変形できる。
(ここでの \(\log\) は自然対数 \(\log_e\) のことである)
そして、残差の二乗和 \(S\) は

\[\begin{eqnarray*} S = \sum_{i=1}^{N}(\log{y_i} - \log{a} - bx_{i})^2 \end{eqnarray*}\]

となる。 \(a,b\) それぞれで偏微分したものを \(0\) とする。

\[\begin{eqnarray*} \frac{\partial S}{\partial a} &=& \frac{2}{a}\sum_{i=1}^{N}(\log{a}+bx_{i} - \log{y_i})= 0 \\ \frac{\partial S}{\partial b} &=& 2\sum_{i=1}^{N}(\log{a}+bx_{i} - \log{y_i})x_i= 0 \end{eqnarray*}\]

\(\log{a} = A\) とおいて、これらを変形すると、

\[\begin{eqnarray*} AN + b\sum_{i=1}^{N}x_i &=& \sum_{i=1}^{N}\log{y_i} \\ A\sum_{i=1}^{N}x_i + b\sum_{i=1}^{N}x_i^2 &=& \sum_{i=1}^{N}x_{i}\log{y_i } \end{eqnarray*}\]

となる。これらの連立方程式を解いて、 \(A,\ b\) を得る。
\(\log{a} = A\) より \(a=e^A\) であることから、 \(a\) が求まる。

2. ガウスの消去法による連立1次方程式の解法について

当ブログ過去記事を参照。

3. ソースコードの作成

  • ファイル読み込み部分、計算部分、実行部分とソースファイルを分けている。

File: file.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#ifndef REGRESSION_CURVE_EXP_E_FILE_HPP_
#define REGRESSION_CURVE_EXP_E_FILE_HPP_

#include <fstream>
#include <string>
#include <vector>

class File {
  std::string f_data;

public:
  File(std::string f_data) : f_data(f_data) {}
  bool get_text(std::vector<std::vector<double>>&);
};

#endif

File: file.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#include "file.hpp"

#include <iostream>
#include <sstream>
#include <string>
#include <vector>

bool File::get_text(std::vector<std::vector<double>>& data) {
  try {
    // ファイル OPEN
    std::ifstream ifs(f_data);
    if (!ifs.is_open()) return false;  // 読み込み失敗

    // ファイル READ
    std::string buf;                   // 1行分バッファ
    while (getline(ifs, buf)) {
      std::vector<double> rec;         // 1行分ベクタ
      std::istringstream iss(buf);     // 文字列ストリーム
      std::string field;               // 1列分文字列

      // 1行分文字列を1行分ベクタに追加
      double x, y;
      while (iss >> x >> y) {
        rec.push_back(x);
        rec.push_back(y);
      }

      // 1行分ベクタを data ベクタに追加
      if (rec.size() != 0) data.push_back(rec);
    }
  } catch (...) {
      std::cerr << "EXCEPTION!" << std::endl;
      return false;
  }

  return true;  // 読み込み成功
}

File: calc.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#ifndef REGRESSION_CURVE_EXP_E_CALC_HPP_
#define REGRESSION_CURVE_EXP_E_CALC_HPP_

#include <vector>

class Calc {
  std::vector<std::vector<double>> data;             // 元データ
  std::vector<std::vector<double>> mtx;              // 計算用行列
  bool solve_ge(std::vector<std::vector<double>>&);  // ガウスの消去法

public:
  Calc(std::vector<std::vector<double>>& data) : data(data) {}
  unsigned int cnt;                                  // データ件数
  bool reg_curve_exp_e(double&, double&);            // 単回帰曲線(e指数回帰)の計算
};

#endif

File: calc.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
#include "calc.hpp"

#include <cmath>
#include <iostream>
#include <sstream>
#include <vector>

/**
 * @brief      単回帰曲線(e指数回帰)の計算
 *
 * @param[ref] a (double)
 * @param[ref] b (double)
 * @return     真偽(bool)
 * @retval     true  成功
 * @retval     false 失敗
 */
bool Calc::reg_curve_exp_e(double& a, double& b) {
  unsigned int i;       // loop インデックス
  double s_x   = 0.0;  // sum(x)
  double s_x2  = 0.0;  // sum(x * x)
  double s_ly  = 0.0;  // sum(log(y))
  double s_xly = 0.0;  // sum(x * log(y))
  double x     = 0.0;  // x 計算用
  double y     = 0.0;  // y 計算用
  double ly    = 0.0;  // log(y) 計算用

  try {
    // データ数
    cnt = data.size();

    // sum(x), sum(x * x), sum(log(y)), sum(x * log(y))
    for (i = 0; i < cnt; i++) {
      x  = data[i][0];
      y  = data[i][1];
      ly = std::log(y);
      s_x   += x;
      s_x2  += x * x;
      s_ly  += ly;
      s_xly += x * ly;
    }
    // 行列1行目
    mtx.push_back({(double)cnt, s_x, s_ly});
    // 行列2行目
    mtx.push_back({s_x, s_x2, s_xly});

    // 計算(ガウスの消去法)
    if (!solve_ge(mtx)) {
      std::cout << "[ERROR] Failed to solve by the Gauss-Ellimination method!"
                << std::endl;
      return false;
    }

    // a, b
    a = std::exp(mtx[0][2]);
    b = mtx[1][2];
  } catch (...) {
    return false;  // 計算失敗
  }

  return true;  // 計算成功
}

/**
 * @brief      ガウスの消去法
 *
 * @param[ref] 行列(配列) mtx (double)
 * @return     真偽(bool)
 * @retval     true  成功
 * @retval     false 失敗
 */
bool Calc::solve_ge(std::vector<std::vector<double>>& mtx) {
  int i;     // loop インデックス
  int j;     // loop インデックス
  int k;     // loop インデックス
  int n;     // 元(行)の数
  double d;  // 計算用

  try {
    n = (int)mtx.size();

    // 前進消去
    for (k = 0; k < n - 1; k++) {
      for (i = k + 1; i < n; i++) {
        d = mtx[i][k] / mtx[k][k];
        for (j = k + 1; j <= n; j++)
          mtx[i][j] -= mtx[k][j] * d;
      }
    }

    // 後退代入
    for (i = n - 1; i >= 0; i--) {
      d = mtx[i][n];
      for (j = i + 1; j < n; j++)
        d -= mtx[i][j] * mtx[j][n];
      mtx[i][n] = d / mtx[i][i];
    }
  } catch (...) {
    return false;  // 計算失敗
  }

  return true;  // 計算成功
}

File: regression_curve_exp_e.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
/***********************************************************
  単回帰曲線(e指数回帰モデル)計算
  : y = a * exp(b * x)
  : 連立方程式をガウスの消去法で解く方法

    DATE          AUTHOR          VERSION
    2020.06.04    mk-mode.com     1.00 新規作成

  Copyright(C) 2020 mk-mode.com All Rights Reserved.
***********************************************************/
#include "calc.hpp"
#include "file.hpp"

#include <cstdlib>   // for EXIT_XXXX
#include <iomanip>   // for setprecision
#include <iostream>
#include <string>
#include <vector>

int main(int argc, char* argv[]) {
  std::string f_data;                     // データファイル名
  std::vector<std::vector<double>> data;  // データ配列
  std::size_t i;                          // loop インデックス
  double a;                               // 定数 a
  double b;                               // 係数 b

  try {
    // コマンドライン引数のチェック
    if (argc != 2) {
      std::cerr << "[ERROR] Number of arguments is wrong!\n"
                << "[USAGE] ./regression_curve_exp_e <file_name>"
                << std::endl;
      return EXIT_FAILURE;
    }

    // ファイル名取得
    f_data = argv[1];

    // データ取得
    File file(f_data);
    if (!file.get_text(data)) {
      std::cout << "[ERROR] Failed to read the file!" << std::endl;
      return EXIT_FAILURE;
    }

    // データ一覧出力
    std::cout << std::fixed << std::setprecision(4);
    std::cout << "説明変数 X  目的変数 Y" << std::endl;
    for (i = 0; i < data.size(); i++)
      std::cout << std::setw(10) << std::right << data[i][0]
                << "  "
                << std::setw(10) << std::right << data[i][1]
                << std::endl;

    // 計算
    Calc calc(data);
    if (!calc.reg_curve_exp_e(a, b)) {
      std::cout << "[ERROR] Failed to calculate!" << std::endl;
      return EXIT_FAILURE;
    }

    // 結果出力
    std::cout << std::fixed << std::setprecision(8);
    std::cout << "---\n"
              << "a = " << std::setw(16) << std::right << a
              << "\n"
              << "b = " << std::setw(16) << std::right << b
              << std::endl;
  } catch (...) {
      std::cerr << "EXCEPTION!" << std::endl;
      return EXIT_FAILURE;
  }

  return EXIT_SUCCESS;
}

4. ソースコードのコンパイル

まず、以下のように Makefile を作成する。(行頭のインデントはタブ文字

File: Makefile

gcc_options = -std=c++17 -Wall -O2 --pedantic-errors

regression_curve_exp_e: regression_curve_exp_e.o file.o calc.o
  g++ $(gcc_options) -o $@ $^

regression_curve_exp_e.o : regression_curve_exp_e.cpp
  g++ $(gcc_options) -c $<

file.o : file.cpp
  g++ $(gcc_options) -c $<

calc.o : calc.cpp
  g++ $(gcc_options) -c $<

run : regression_curve_exp_e
  ./regression_curve_exp_e

clean :
  rm -f ./regression_curve_exp_e
  rm -f ./*.o

.PHONY : run clean

そして、ビルド(コンパイル&リンク)。

$ make

5. 動作確認

まず、以下のような入力ファイルを用意する。
(各行は x と y の値)

File: data.txt

1
2
3
4
5
6
7
8
9
10
11
12
13
14
83 183
71 168
64 171
69 178
69 176
64 172
68 165
59 158
81 183
91 182
57 163
65 175
58 164
62 175

そして、ファイル名を引数に指定して実行。

$ ./regression_curve_exp_e data.txt
説明変数 X  目的変数 Y
   83.0000    183.0000
   71.0000    168.0000
   64.0000    171.0000
   69.0000    178.0000
   69.0000    176.0000
   64.0000    172.0000
   68.0000    165.0000
   59.0000    158.0000
   81.0000    183.0000
   91.0000    182.0000
   57.0000    163.0000
   65.0000    175.0000
   58.0000    164.0000
   62.0000    175.0000
---
a =     134.44579219
b =       0.00360441

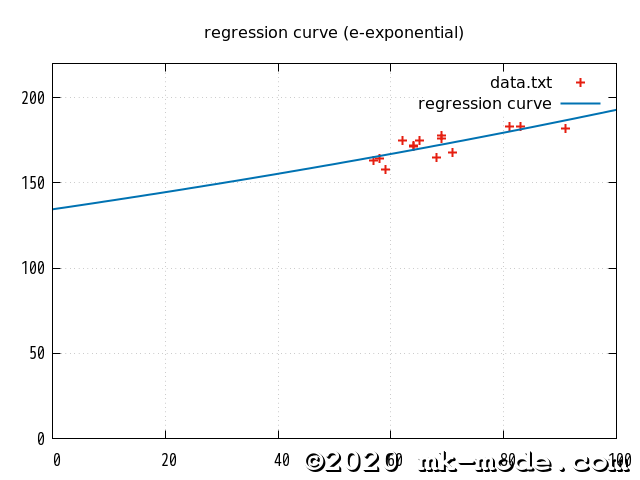

参考までに、上記で使用した2変量の各点と作成された単回帰直線を gnuplot で描画してみた。

REGRESSION_CURVE_EXP_E


以上。
