Fortran - LU 分解(内積形式ガウス法(inner-product form))!

Updated:


Fortran 95 で正方行列の LU 分解アルゴリズムを実装してみました。

今回使用する分解法は「内積形式ガウス法(inner-product form)」

過去には Ruby で同じことをしました。

0. 前提条件

  • LMDE 3 (Linux Mint Debian Edition 3; 64bit) での作業を想定。
  • GCC 6.3.0 (GFortran 6.3.0) でのコンパイルを想定。

1. LU 分解について

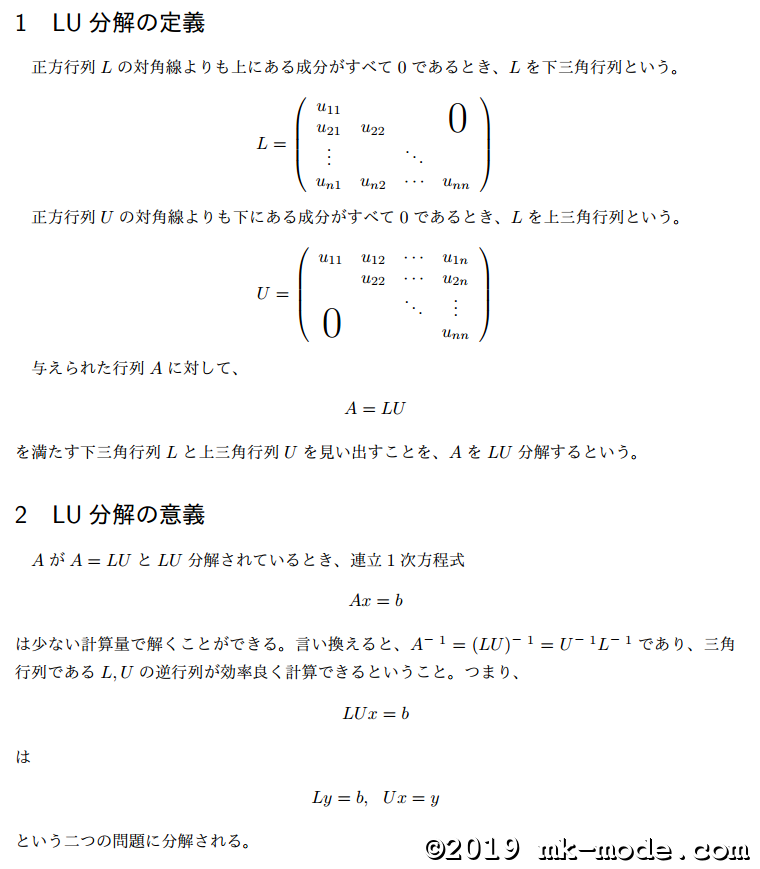

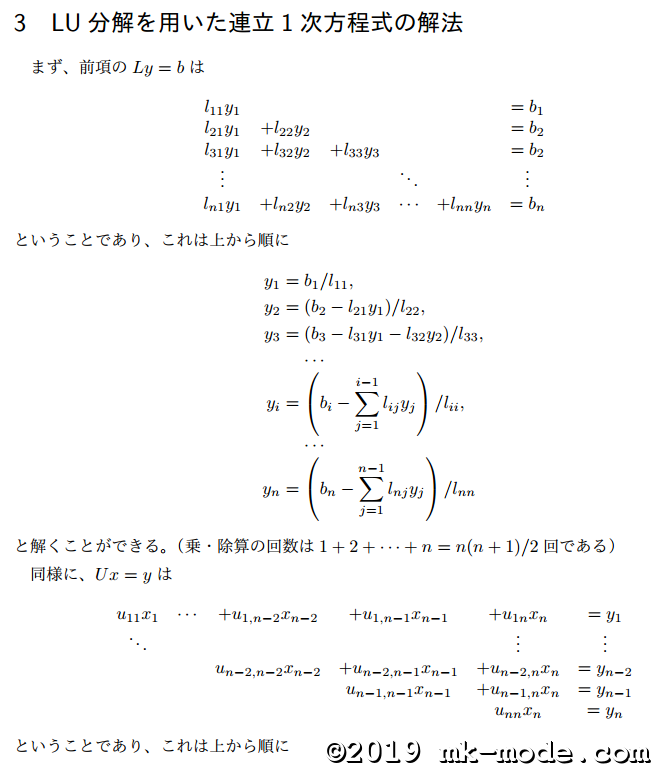

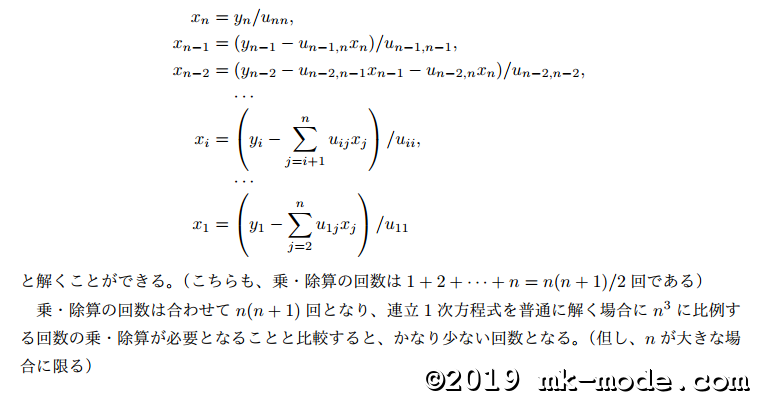

LU_DECOMPOSITION_1 LU_DECOMPOSITION_2 LU_DECOMPOSITION_3

分解する方法には以下のようなものがある。(最初の3つがよく知られているもの)

  • 外積形式ガウス法
  • 内積形式ガウス法
  • クラウト法
  • ブロック形式ガウス法
  • 縦ブロックガウス法
  • 前進・後退代入

2. LU 分解(内積形式ガウス法(inner-product form))について

  • LU 分解がなされたと仮定した上で、行列 L の対角要素を 1 として導出した方法。
  • 分解列の左側の領域が主に参照される方法で、 “left-looking” アルゴリズムと呼ばれる。
  • 並列化について
    • 行列 A を列方向分散 (*, Cyclic)
      • 参照領域のデータがないので、通信が多発する。(ベクトルリダクションが毎回必要)
    • 行列 A を行方向分散 (Cyclic, *)
      • 上三角行列 U の要素(データ数が少ない)を所有すれば、独立して計算可能。

3. Fortran ソースコードの作成

  • 本来、 L と U の2つの行列に分けるものだが1つの行列にまとめている。(実際に LU 分解を使用する際に L と U を意識して取り扱えばよいだけなので)

File: lu_decomposition_2.f95

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
!************************************************************
! LU 分解(内積形式ガウス法(inner-product form))
!
!   date          name            version
!   2019.03.08    mk-mode.com     1.00 新規作成
!
! Copyright(C) 2019 mk-mode.com All Rights Reserved.
!************************************************************
!
module const
  ! SP: 単精度(4), DP: 倍精度(8)
  integer,     parameter :: SP = kind(1.0)
  integer(SP), parameter :: DP = selected_real_kind(2 * precision(1.0_SP))
end module const

module lu
  use const
  implicit none
  private
  public :: decompose

contains
  ! LU 分解
  ! * 内積形式ガウス法(inner-product form)
  !
  ! :param(inout) real(8) a(:,:): 行列
  subroutine decompose(a)
    implicit none
    real(DP), intent(inout) :: a(:, :)
    integer(SP) :: i, j, k, n
    real(DP)    :: tmp

    n = int(sqrt(real(size(a))))
    do k = 1, n
      do j = 1, k - 1
        tmp = a(j, k)
        a(j+1:n, k) = a(j+1:n, k) - a(j+1:n, j) * tmp
      end do
      if (a(1, 1) == 0.0_DP) then
        print *, "Can't divide by 0 ..."
        stop
      end if
      tmp = 1.0_DP / a(k, k)
      a(k+1:n, k) = a(k+1:n, k) * tmp
    end do
  end subroutine decompose
end module lu

program lu_decomposition
  use const
  use lu
  implicit none
  character(9), parameter :: F_INP = "input.txt"
  integer(SP),  parameter :: UID   = 10
  integer(SP) :: n_row, n_col, i, j, k, n
  real(DP)    :: tmp
  real(DP), allocatable :: a(:, :)

  ! ファイル OPEN
  open (UID, file = F_INP, status = 'old')

  ! 行数・列数取得
  read (UID, *) n_row, n_col

  ! 配列用メモリ確保
  allocate(a(n_row, n_col))

  ! 行列取得
  do i = 1, n_row
    read (UID, *) a(i, :)
  end do
  call display(a)

  ! ファイル CLOSE
  close (UID)

  ! LU 分解
  call decompose(a)
  print *, "-->"
  call display(a)

  ! 配列用メモリ解放
  deallocate(a)

  stop
contains

  subroutine display(a)
    implicit none
    real(DP), intent(in) :: a(:, :)
    integer(SP)  :: i, j, n
    character(8) :: f

    n = int(sqrt(real(size(a))))
    f = "(IF8.2)"
    write (f(2:2), '(I1)') n
    do i = 1, n
      write (*, f) a(i, :)
    end do
  endsubroutine display
end program lu_decomposition

4. ソースコードのコンパイル

$ gfortran -o lu_decomposition_2 lu_decomposition_2.f95

5. 動作確認

元の行列はテキストファイルから取り込むようにしているので、まず、テキストファイルを作成する。(1行目:行・列の数、2行目以降:1行ずつの値)

File: input.txt

1
2
3
4
3 3
2 -3  1
1  1 -1
3  5 -7

そして、実行。

$ ./lu_decomposition_2
    2.00   -3.00    1.00
    1.00    1.00   -1.00
    3.00    5.00   -7.00
 -->
    2.00   -3.00    1.00
    0.50    2.50   -1.50
    1.50    3.80   -2.80

行列 L の対角成分を 1 として L と U に分けて LU を計算してみると、 A になるだろう。


以上。
